Tri-Clamp Ferrule Gaskets
Immediate Dispatch Available
Widely used in the food, dairy, pharmaceutical and chemical industries, all gaskets are FDA approved to meet quality compliance regulations.
Product Information:
- Supplied as Type 2 Lipped as standard.
- 0.5 - 4 inch Ferrule Gaskets are available in each material.

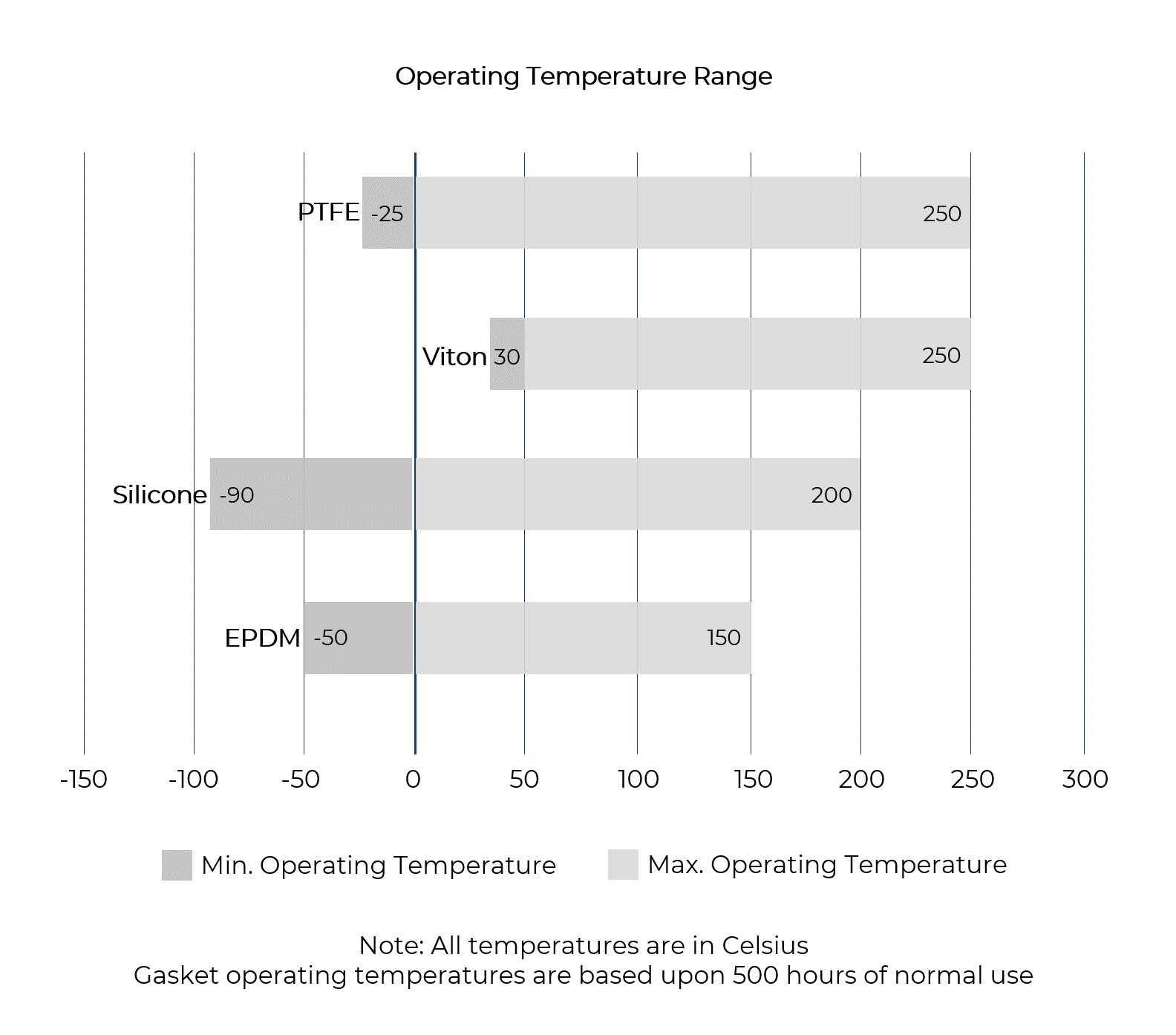

- Hygienic Silicone, PTFE Solid, Viton® and EPDM material options.
- Useage: designed to form a seal between Ferrule Ends, when used in conjunction with our Clamps.
Available from Stock (subject to availability)
Pricing:
| Product No. | Description | Material | Price |
|---|---|---|---|
| SS1707012 | 0.5" Clamp Seal | Silicone | £3 |
| SS1707034 | 0.75" Clamp Seal | Silicone | £3 |
| SS1707100 | 1" Clamp Seal | Silicone | £3 |
| SS1707112 | 1.5" Clamp Seal | Silicone | £3 |
| SS1707200 | 2" Clamp Seal | Silicone | £7 |
| SS1707212 | 2.5" Clamp Seal | Silicone | £4 |
| SS1707300 | 3" Clamp Seal | Silicone | £5 |
| SS1707400 | 4" Clamp Seal | Silicone | £9 |
| ES1707012 | 0.5" Clamp Seal | EPDM | £2 |
| ES1707034 | 0.75" Clamp Seal | EPDM | £2 |
| ES1707100 | 1" Clamp Seal | EPDM | £2 |
| ES1707112 | 1.5" Clamp Seal | EPDM | £2 |
| ES1707200 | 2" Clamp Seal | EPDM | £2 |
| ES1707212 | 2.5" Clamp Seal | EPDM | £3 |
| ES1707300 | 3" Clamp Seal | EPDM | £3 |
| ES1707400 | 4" Clamp Seal | EPDM | £6 |
| VI1707012 | 0.5" Clamp Seal | Viton | £4 |
| VI1707034 | 0.75" Clamp Seal | Viton | £4 |
| VI1707100 | 1" Clamp Seal | Viton | £6 |
| VI1707112 | 1.5" Clamp Seal | Viton | £6 |
| VI1707200 | 2" Clamp Seal | Viton | £7 |
| VI1707250 | 2.5" Clamp Seal | Viton | £8 |
| VI1707300 | 3" Clamp Seal | Viton | £11 |
| VI1707400 | 4" Clamp Seal | Viton | £15 |
| PTFE6000.5P | 0.5" Clamp Seal | PTFE | £3.00 |
| PTFE6000.75P | 0.75" Clamp Seal | PTFE | £3 |
| PTFE6001P | 1" Clamp Seal | PTFE | £6 |
| PTFE6001.5P | 1.5" Clamp Seal | PTFE | £6 |
| PTFE6002P | 2" Clamp Seal | PTFE | £7 |
| PTFE6003P | 3" Clamp Seal | PTFE | £12 |
| PTFE6004P | 4" Clamp Seal | PTFE | £12 |
What Are Tri Clamps Used For?
Tri clamps are most used in brewing, food & beverage & pharmaceutical applications to secure 3-piece fittings.
Is A Tri Clover The Same As A Tri Clamp?
Yes, a tri clover is simply a branded name for tri-clamp fittings. They are both compatible and can be used interchangeably.
What Is A Tri Clamp Ferrule Gasket?
They are designed to form a seal between ferrule ends. They have a raised ridge on each side of the gasket that fills the ridge of the ferrule end.
